Impact of non-uniform distribution on collision rate

Collisions

Trimming:

umi_lengths <- rep(6:10, 2)
is_reverse <- c(rep(F, 5), rep(T, 5))

trimmed <- mcmapply(function(i, b) TrimUmisSummary(reads_per_umi_per_cell, i, b),
                    umi_lengths, is_reverse, SIMPLIFY = F, mc.cores=10)

collisions_infos <- lapply(trimmed, function(d) d$collisions.info)
collision_df <- mapply(function(s, l, r) data.frame(Observed=1:length(s), Adjusted=s,
                                                    UmiLength=l, IsReverse=r),
              collisions_infos, umi_lengths, is_reverse, SIMPLIFY = F) %>%
  bind_rows() %>%
  mutate(AdjustedUniform=mapply(AdjustGeneExpressionUniform, Observed, 4^UmiLength))

collision_dfs <- split(collision_df, collision_df$IsReverse) %>%
  setNames(c('Reverse', 'Direct'))

rm(trimmed, reads_per_umi_per_cell, collisions_infos, collision_df)
invisible(gc())

plt_guide <- guides(color=guide_legend(title='UMI length', nrow = 2, order=1),
                    linetype=guide_legend(title='UMI distribution', order=2, keywidth = 1.5))

expand <- c(0.01, 0)

fig_collisions <- ggplot(collision_dfs$Direct, aes(x=Observed, col=as.factor(UmiLength))) +
  geom_line(aes(y=Adjusted - Observed, linetype='Empirical'), size=0.9) +
  geom_line(aes(y=AdjustedUniform - Observed, linetype='Uniform'), size=0.9) +
  scale_x_continuous(expand = expand, breaks=seq(4000, 12000, 4000)) +
  scale_y_continuous(expand = expand) +
  labs(x='#Observed UMIs', y='#Collisions') +
  theme_pdf(legend.pos=c(1, 1)) + plt_guide

fig_collisions <- cowplot::plot_grid(fig_collisions, labels='C')

ggsave(paste0(kPlotsFolder, '/fig_collisions.pdf'), fig_collisions, height=5.5, width=3.5)
print(fig_collisions)

rm(fig_collisions);

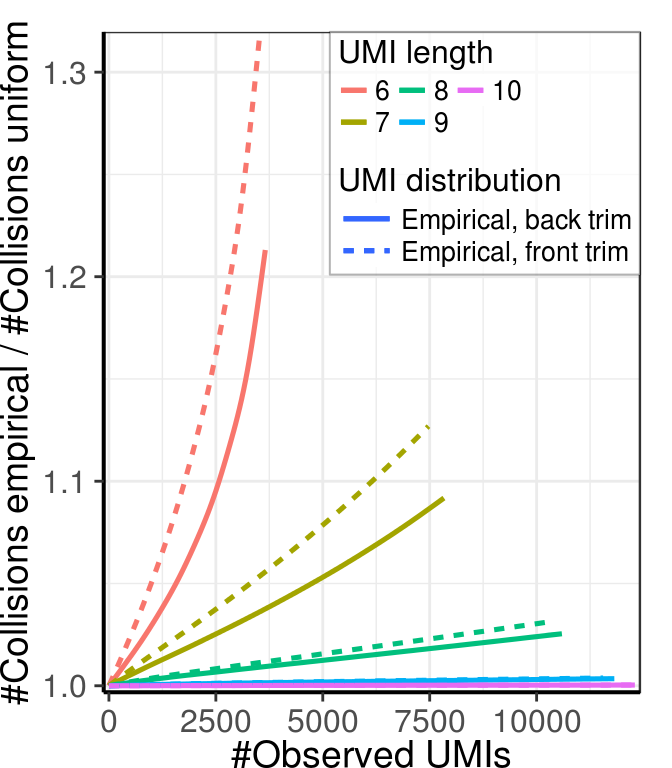

gg_collisions_ext <- ggplot(mapping=aes(x=Observed, col=as.factor(UmiLength),
                                        y=Adjusted / AdjustedUniform)) +
  geom_smooth(data=collision_dfs$Direct, mapping=aes(linetype='Empirical, back trim'),
              size=0.9, se=F) +
  geom_smooth(data=collision_dfs$Reverse, mapping=aes(linetype='Empirical, front trim'),
              size=0.9, se=F) +
  scale_x_continuous(expand = expand) + scale_y_continuous(expand = expand) +
  labs(x='#Observed UMIs', y='#Collisions empirical / #Collisions uniform') +
  theme_pdf(legend.pos=c(1, 1)) +
  plt_guide

rm(collision_dfs)
gg_collisions_ext

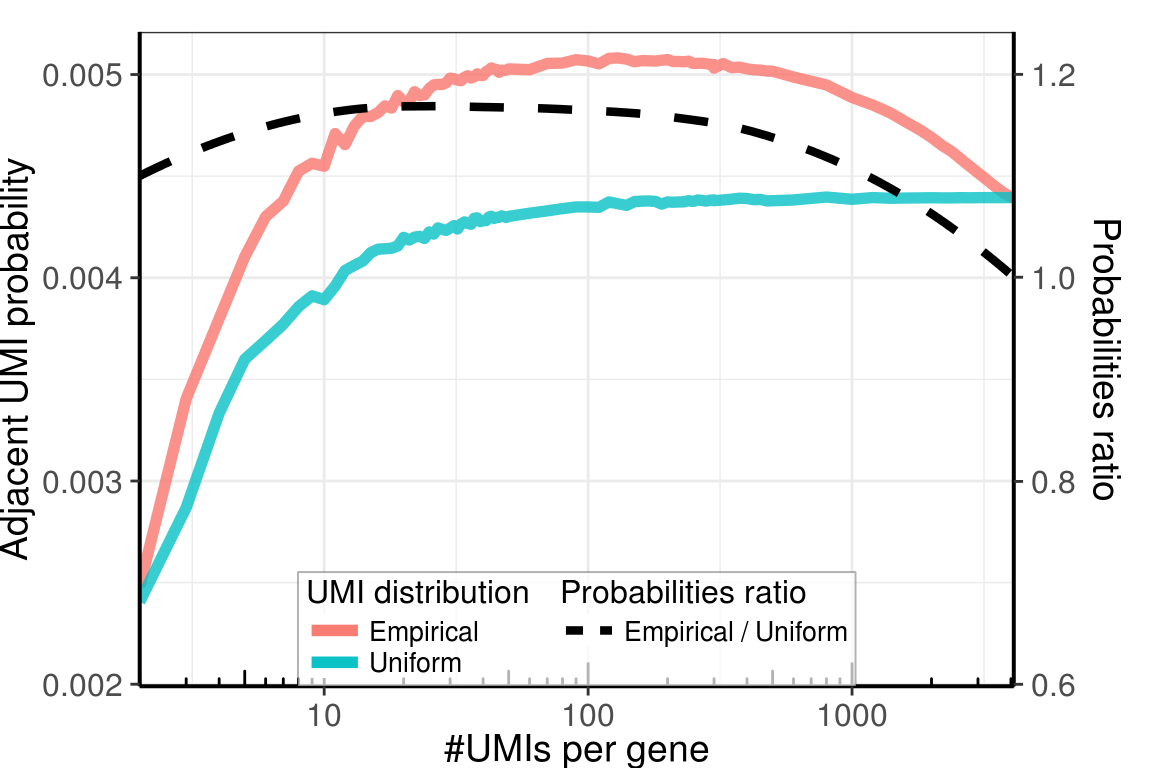

Estimated number of adjacent UMIs

holder <- readRDS(paste0(kDataPath, 'SCG71/est_01_15_umi_quality/SCG71.rds'))
umi_distribution <- GetUmisDistribution(holder$reads_per_umi_per_cell$reads_per_umi)
umi_probs <- umi_distribution / sum(umi_distribution)

rm(holder, umi_distribution)
invisible(gc())

gene_sizes <- list(2:10, 11:50, seq(60, 300, 10), seq(300, 500, 25), seq(600, 4090, 200),
                   c(4050, 4095))
sample_nums <- unlist(mapply(rep, c(100000, 100000, 15000, 1000, 500, 500),
                             sapply(gene_sizes, length)))
gene_sizes_f <- unlist(gene_sizes)

adjacent_umis_num <- mcmapply(function(s, n)
  SampleNumbersOfAdjacentUmis(s, umi_probs, n, uniform=F),
  gene_sizes_f, sample_nums, mc.cores=30)
adjacent_umis_num_unif <- mcmapply(function(s, n)
  SampleNumbersOfAdjacentUmis(s, umi_probs, n, uniform=T),
  gene_sizes_f, sample_nums, mc.cores=30)

plot_df <- data.frame(GeneSize=c(1, unlist(gene_sizes))) %>%
  mutate(ProbOfAdjacentUMIs=c(0, sapply(adjacent_umis_num, mean)) / GeneSize^2,
         ProbOfAdjacentUMIsUnif=c(0, sapply(adjacent_umis_num_unif, mean)) / GeneSize^2)

axis_ratio <- 200
axis_offset <- 0.001

gg_prob_ratio <- ggplot(plot_df, aes(x=GeneSize)) +
  geom_line(aes(y=ProbOfAdjacentUMIs, color='Empirical'), size=2, alpha=0.8) +
  geom_line(aes(y=ProbOfAdjacentUMIsUnif, color='Uniform'), size=2, alpha=0.78) +
  geom_smooth(aes(y=ProbOfAdjacentUMIs / ProbOfAdjacentUMIsUnif / axis_ratio - axis_offset,
                  linetype='Empirical / Uniform'), size=1.5, color='black', se=FALSE) +
  labs(x = '#UMIs per gene', y='Adjacent UMI probability') +
  scale_x_log10(expand=c(0, 0), limits=c(2, 4100)) + annotation_logticks(side='b') +
  scale_y_continuous(expand=c(1e-5, 1e-5), limits=c(0.002, 0.0052),
                     sec.axis=sec_axis(trans=~.*axis_ratio + axis_offset*axis_ratio,
                                       name='Probabilities ratio')) +
  scale_linetype_manual(values='dashed', name='Probabilities ratio') +
  guides(color=guide_legend(title='UMI distribution')) +
  guides(linetype=guide_legend(override.aes=list(linetype=6))) +
  theme_pdf(legend.pos=c(0.5, 0)) +
  theme(legend.box='horizontal', legend.key.width=unit(0.3, 'in'))
gg_prob_ratio

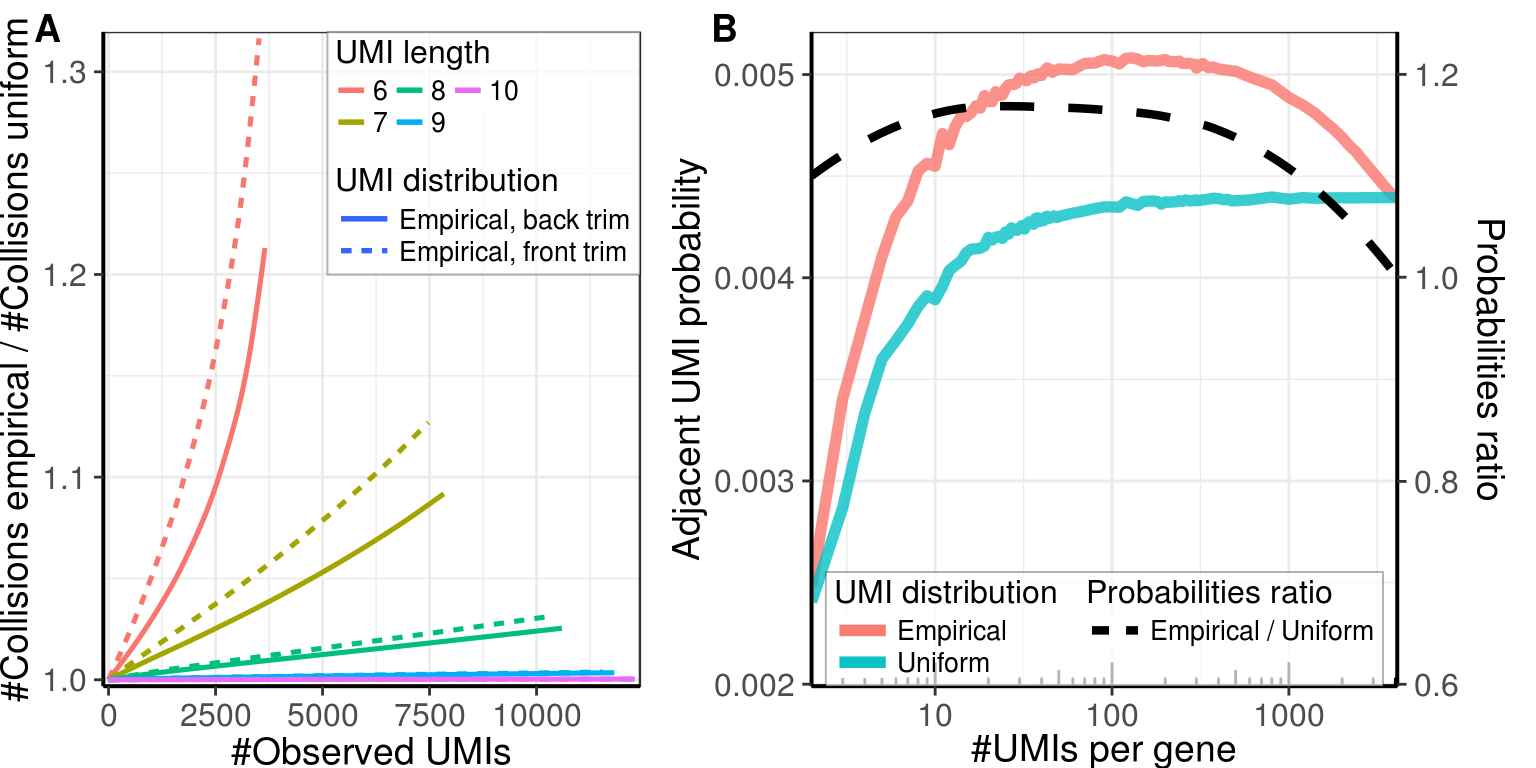

Complete figure

gg_figure <- cowplot::plot_grid(gg_collisions_ext, gg_prob_ratio, ncol=2, labels="AUTO",
                                align='h', rel_widths=c(3.5, 4.5), label_x=0.03)

ggsave(paste0(kPlotsFolder, 'supp_impact_on_collisions.pdf'), gg_figure, width=8, height=4)
gg_figure

Session information
