Validation of filtration of low-quality cells on inDrop Mouse BMCs

Load data

holder <- readRDS(paste0(kEstDataPath, 'SCG71.rds'))

est_cell_num <- EstimateCellsNumber(holder$aligned_umis_per_cell)
umis_per_cell <- sort(holder$aligned_umis_per_cell, decreasing=T)

scores <- ScorePipelineCells(holder, mit.chromosome.name='chrM', predict.all=T,
                             verbose=T)[names(umis_per_cell)]

Explained variance after PCA: 96.78%; used 3 PCs.
Used features: ReadsPerUmi, UmiPerGene, LowExpressedGenesFrac.

PlotCellScores(scores)

intersect_cbs <- names(scores[1:est_cell_num$expected])
intersect_cbs <- intersect_cbs[scores[intersect_cbs] > 0.9]

unknown_cell_scores <- scores[(est_cell_num$expected+1):length(scores)]
rescued_cbs <- names(unknown_cell_scores)[unknown_cell_scores > 0.9]

unknown_cell_scores <- scores[1:est_cell_num$expected]
filtered_cbs <- names(unknown_cell_scores)[unknown_cell_scores < 0.1]

c(Unchanged=length(intersect_cbs),
  Rescued=length(rescued_cbs), Filtered=length(filtered_cbs))

Unchanged   Rescued  Filtered
     4684       126        86

r_cm_rescued <- holder$cm_raw[, c(names(umis_per_cell)[1:est_cell_num$expected],
                                  rescued_cbs)]

# You need to run "annotation/annotation_bmc.Rmd" first
clusters_annotated <- paste0(kAnnotationDataPath, 'indrop_bmc_clusters_annotated.csv') %>%
  read.csv() %>% (function(x) setNames(as.character(x$Type), x$Barcode))

Rescued cells

r_rescued <- GetPagoda(r_cm_rescued, n.cores=30)

5558 cells, 11856 genes; normalizing ... using plain model winsorizing ... log scale ... done.
calculating variance fit ... using gam 198 overdispersed genes ... 198 persisting ... done.
running PCA using 1000 OD genes .... done
calculating distance ... pearson ...running tSNE using 30 cores:

intersect_clusters <- clusters_annotated[intersect(names(clusters_annotated),
                                                   intersect_cbs)]
notannotated_cells <- setdiff(colnames(r_cm_rescued), names(clusters_annotated))

clusters_annotated_resc <- AnnotateClustersByGraph(r_rescued$graphs$PCA,
                                                   clusters_annotated, notannotated_cells,
                                                   max.iter=100, mc.cores=10)
rescued_clusters <- clusters_annotated_resc[rescued_cbs]
intersect_clusters <- clusters_annotated[intersect_cbs]

plot_cbs <- names(clusters_annotated) %>% setdiff(rescued_cbs) %>% setdiff(filtered_cbs)
plot_clusters <- clusters_annotated[plot_cbs]
plot_rescued_clusters <- rescued_clusters

for (type in c("Maturing neutrophils", "Maturing macrophages", "Cycling cells")) {
  plot_clusters[plot_clusters == type] <- gsub(" ", "\n", type)
  plot_rescued_clusters[plot_rescued_clusters == type] <- gsub(" ", "\n", type)
}

gg_tsne <- PlotFiltrationResults(r_rescued, plot_clusters, filtered.cbs=filtered_cbs,
                                 rescued.clusters=plot_rescued_clusters,
                                 raster.width=4, raster.height=4.8, lineheight=0.9) +
  ylim(-35, 33) +
  theme_pdf(legend.pos=c(0, 1), show.ticks = F)

gg_tsne

rescued_table <- TableOfRescuedCells(clusters_annotated_resc[c(intersect_cbs, rescued_cbs)],
                                     rescued_cbs)
write.csv(rescued_table, paste0(kOutputFolder, "tables/rescued_cbc_bmc.csv"), row.names=F)
rescued_table

seurat_cm <- r_cm_rescued[Matrix::rowSums(r_cm_rescued) > 200, ]
srt <- CreateSeuratObject(raw.data=r_cm_rescued, project="BMC", display.progress=F)
srt <- NormalizeData(object=srt, normalization.method="LogNormalize", scale.factor=10000)
srt <- FindVariableGenes(object=srt, mean.function=ExpMean, dispersion.function=LogVMR,
                         x.low.cutoff = 0.0125, x.high.cutoff = 3, y.cutoff = 1, do.plot=F)
srt <- ScaleData(object = srt, vars.to.regress = "nUMI", display.progress=F)

srt@ident <- as.factor(clusters_annotated_resc[colnames(srt@raw.data)])
names(srt@ident) <- colnames(srt@raw.data)
compared_clusters <- unique(srt@ident)
cluster_markers <- mclapply(compared_clusters, function(i)
  mclapply(setdiff(compared_clusters, i), FindClusterMarkers, i, srt, mc.cores=4),
  mc.cores=11)

overexpressed_genes <- GetOverexpressedGenes(srt, compared_clusters, cluster_markers)
clusters_info <- list(clusters=srt@ident, marks=cluster_markers,
                      overexpressed_genes=overexpressed_genes)

Heatmaps

tested_clusts <- sort(c(intersect_clusters, rescued_clusters))
separation <- c(setNames(rep('rescued', length(rescued_cbs)), rescued_cbs),
                setNames(rep('real', length(intersect_clusters)), names(intersect_clusters)))

umis_per_cb_subset <- log10(Matrix::colSums(r_cm_rescued[, names(tested_clusts)]))
tested_clusts <- tested_clusts[order(tested_clusts, -umis_per_cb_subset)]

de_genes <- clusters_info$overexpressed_genes

plot_df <- ExpressionMatrixToDataFrame(r_rescued$counts[names(tested_clusts), de_genes],
                                       umis_per_cb_subset, as.factor(tested_clusts),
                                       filtration.type=separation)
plot_df <- plot_df %>% filter(UmisPerCb < 2.83)
plot_dfs <- split(plot_df, plot_df$FiltrationType)

ggs <- lapply(plot_dfs, HeatmapAnnotGG, umi.per.cell.limits=range(plot_df$UmisPerCb))
legend_guides <- list(HeatmapLegendGuide('Expression'),
                      HeatmapLegendGuide('Cell type', guide=guide_legend, ncol=3),
                      HeatmapLegendGuide('log10(#molecules)'))

gg_legends <- mapply(`+`, ggs$real, legend_guides, SIMPLIFY=F) %>%
  lapply(`+`, theme(legend.margin=margin(l=4, r=4, unit='pt'))) %>% lapply(get_legend)

ggs$real$heatmap <- ggs$real$heatmap + rremove('xlab') + ylab('Cells')
ggs$rescued$heatmap <- ggs$rescued$heatmap + labs(x = 'Genes', y = 'Cells')
ggs_annot <- ggs %>%
  lapply(function(gg) cowplot::plot_grid(
    plotlist=lapply(gg, `+`, theme(legend.position="none", plot.margin=margin())),
    nrow=1, rel_widths=c(1.5, 0.1, 0.1), align='h'))

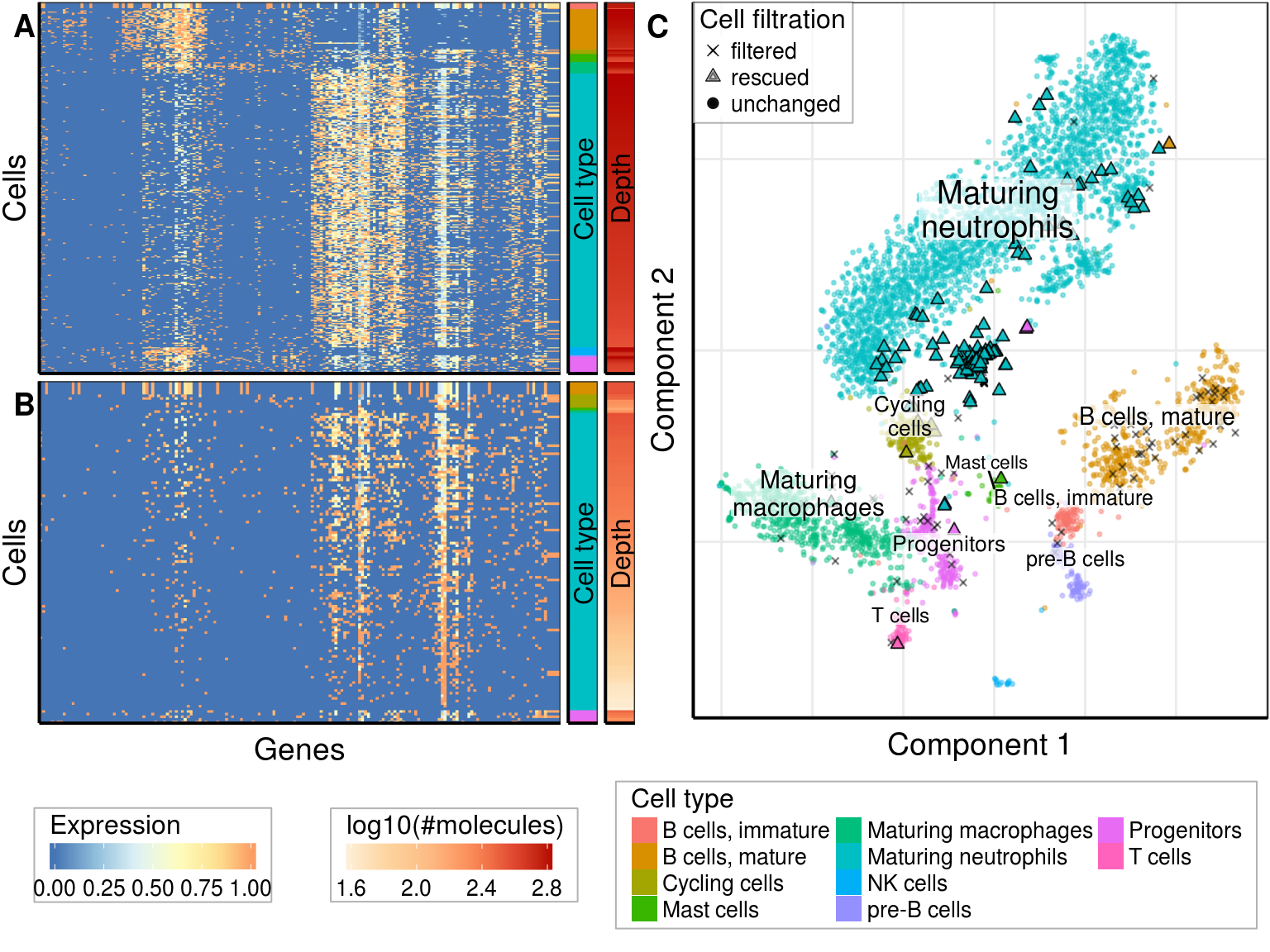

Figure

gg_left <- cowplot::plot_grid(ggs_annot$real, ggs_annot$rescued, nrow=2, labels=c('A', 'B'))
gg_right <- gg_tsne + theme(plot.margin=margin(l=0.1, unit='in'),
                            axis.text=element_blank(), axis.ticks=element_blank())
gg_bottom <- cowplot::plot_grid(plotlist=gg_legends[c(1, 3, 2)], ncol=3,
                                rel_widths=c(1, 1, 2.2))

gg_fig <- cowplot::plot_grid(gg_left, gg_right, labels=c('', 'C'), ncol=2) %>%
  cowplot::plot_grid(gg_bottom, nrow=2, rel_heights=c(1, 0.25), align='v') +
  theme(plot.margin=margin(1, 1, 1, 1))

gg_fig

ggsave(paste0(kOutputFolder, 'figures/fig_bmc_lq_cells.pdf'), gg_fig, width=8, height=6)
